Grinder Homogenizer,High-Capacity Grinder,Ball Mill Homogenizer,Sample Disruption,ZY-384,Sample Volumes 384×0.2-0.5ml,384*2ml,Grinding Ball Diameter 0.02-30mm,Frequency Setting 30-70 Hz

Product Introduction

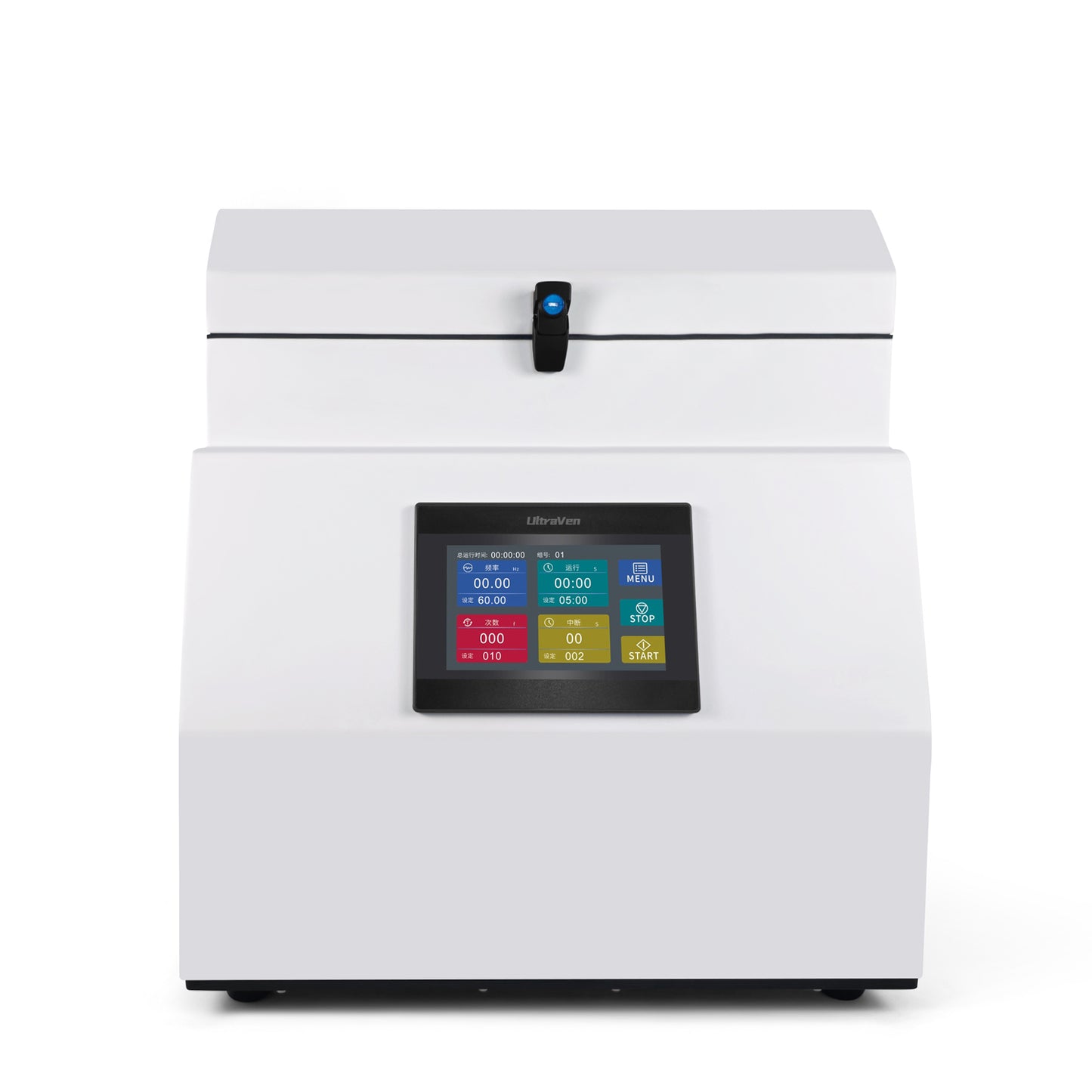

• High-Capacity Grinder is a newly developed product by our company. It features comprehensive functionality, a novel appearance, and reliable performance. The instrument is equipped with a large LCD screen and is centrally controlled by a microcomputer, allowing for flexible settings of sample quantity, time, and grinding power. It also supports automatic frequency tracking, fault alarms, and automatic program storage.

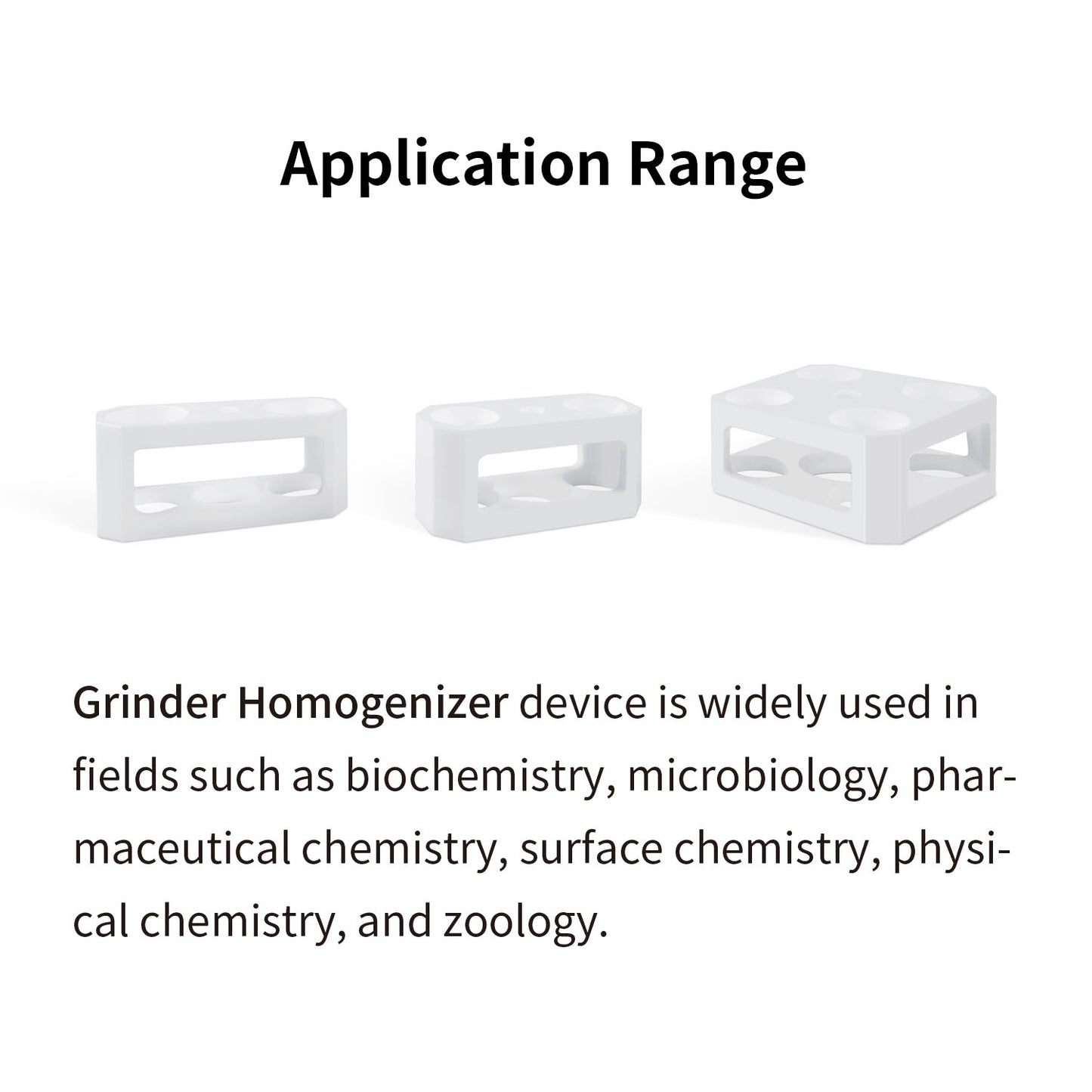

• The tissue grinder can perform dry grinding, wet grinding, mixing, and homogenization. It can process various types of samples, including plant tissues (such as rice, corn, wheat, beans, peanuts, etc.), animal tissues (such as muscles, small intestines, heart, lungs, fur, bones, etc.), cells, bacteria, yeast, and various traditional Chinese medicinal materials. It significantly enhances grinding efficiency and quality for extracting nucleic acids from high-throughput samples. This device is widely used in fields such as biochemistry, microbiology, pharmaceutical chemistry, surface chemistry, physical chemistry, and zoology.


Product Features

High throughput with excellent results

• The highly efficient and fast operation allows grinding of 2×24, 2×48, or 4×96 samples within 1 minute, saving time and effort. It ensures minimal inter- and intra-batch variation. The extracted proteins exhibit higher specific activity, and nucleic acid fragments are longer.

No cross-contamination

• During the grinding process, the sample tubes are fully enclosed. Disposable centrifuge tubes and beads can be used, ensuring that the samples remain intact within the tubes, preventing cross-contamination between samples and contamination from external sources.

Easy operation

• 1. Built-in program controller allows users to set parameters such as grinding time and rotor vibration frequency.
• 2. User-friendly interface.

High stability

• 1. The vertical oscillation mode ensures more thorough grinding and greater stability.
• 2. During operation, the noise level is below 55dB, which does not interfere with other experiments or equipment.

Convenient for low-temperature operation

• For low-temperature grinding, the sample-loaded adapters can be immersed in liquid nitrogen for 1-2 minutes. After cooling, they can be transferred to the main unit for quick fixation and grinding, eliminating the need for refreezing and saving liquid nitrogen.

Excellent repeatability

• By setting the same program for the same tissue samples, identical grinding results are obtained. The short operation time prevents any temperature rise in the samples.

Technical Parameters
